K2-1-LR NO Touch Style Exit Button Touchless Exit Button

Product Categories
SHENZHEN CAMEL SECURITY CO.,LTD
Contact Now

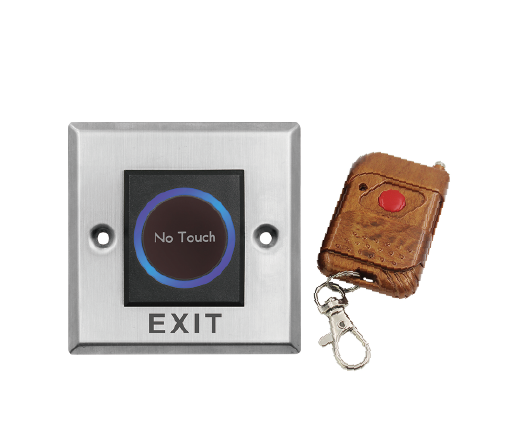

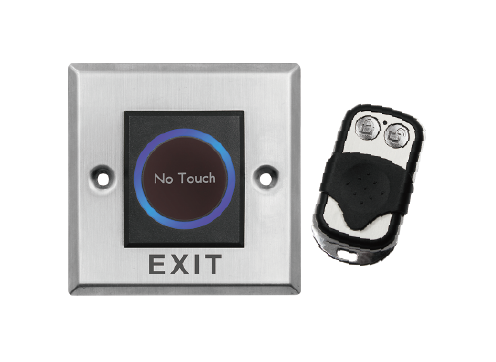

K2-1-LR NO Touch Style Exit Button Touchless Exit Button

  • 1
  • 2

Brand Name : CAMEL SECURITY

Model Number : K2-1-LR

Place of Origin : China

Model : K2-1-LR

Size : 86L*86W*16H(mm)

Weight : 0.15KG

Power Supply : DC12-24V

Output Contact : NO/NC/COM

Control Distance : ≤30m remote control distance (Indoor

Remote control : Add 30 single button controllers

Sensitive Distance : 5-15cm（Adjustable）

Time Delay : Customized 0-9s delay adjustment（K2-1-LTR）

LED Indicator : Standby blue, Response green

Material : Stainless steel panel

Mechanical Life : 500,000 Tested aging test qualified

Accessories : 115*70mm Back box optional

Operating Temp : -20℃～+55℃(-4-131F)

Operating humidity : 0-95% (RH)

Contact Now

Model: K2-1-LR

NO Touch Style Exit Button;
NO/NC/COM;
Stainless Steel Face Plate;
Sensitive Distance 5~15cm;
Time Delay 0/3/6/9s Optional;
433 Remote Control, max 30pcs controller;

Product Parameter

Model

K2-1-LR

Size(mm)

86L*86W*16H (mm)

Weight(KG)

0.17KG

Power Supply

DC12-24V

Output Contact

NO/NC/COM
Control Distance
≤30m remote control distance (Indoor

Sensitive Distance

5-15cm(Adjustable)

Time Delay

0-9s delay adjustment(K1-1-T)

LED Indicator

Standby blue, Response green

Material

Stainless steel panel

Accessories

86*86mm Back box optional

Panel logo

Customizable

Mechanical Life

500,000 Tested aging test qualifified

Operating Temp

-20℃～+55℃(-4-131F)

Operating humidity

0-95%(RH)

Package Quantity

1 PCS/box, 100 PCS/case.

Features:

  • ≤30m effffective remote control distance (Indoor)
  • Wide Voltage DC 12~24V;
  • Sensitive Distance 5~15cm;
  • NO/NC/COM;
  • Standby Blue LED, Active Green LED
  • Laser texture, Not discolor
View
Front (Standby)
Front (Response)
Side
Back
Photos
 K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button

Model
K2-R
K2-1-R
Optional
Palm
Standard scheme
Option 1
Option 2
Gamepad
807M
(Metal duck egg gamepad)
807M
(Metal duck egg gamepad)
807P
(Peach gamepad)
807ML
(Metal self-locking gamepad)
Photos
 K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button K2-1-LR NO Touch Style Exit Button Touchless Exit Button
